The MSK Playbook: Ulnar Nerve Entrapment

Don’t lose your nerve with the ulnar nerve: A guide to working up entrapment neuropathies.

Introduction: What is Ulnar Nerve Entrapment?

Ulnar nerve entrapment neuropathies commonly present to MSK and orthopaedics clinics, with patient’s reporting (pins and needles, paraesthesia, or muscle weakness) that fits a typical distribution. Unpicking the site of compression of the nerve, during a focussed clinical exam, can help clinicians to decide on what work up (imaging, EMG, injection therapy or orthopaedic interventions are needed). We discuss the key clinical tests to use as part of your work, the common imaging findings, and treatment options for ulnar nerve entrapment syndromes.

Getting to grips with the ulnar nerve

Ulnar nerve entrapment is the second most common entrapment neuropathy in the upper limb, (after carpal tunnel syndrome). It commonly occurs at two main anatomical landmarks one at the elbow (cubital tunnel syndrome) and one at the wrist (Guyon’s canal syndrome).

  • Cubital tunnel syndrome – has a reported incidence of 30/100,00 (1)
  • Incidence of Guyon’s canal syndrome unclear due to lack of population studies.
  • Ulnar nerve entrapment neuropathies are reported to be twice as common in middle aged males compared to females (2)
  • It has been reported to be common in exercising patients and athletes (cycling, baseball, golfers, weightlifters) and construction workers (24).

Common causes of entrapment neuropathies, include trauma, anatomical variations, functional positions, and compressive lesions.

The Ulnar nerve: Nerve roots and & function

Spinal roots
  • C8-T1
Ulnar nerve course
  • Ulnar nerve arises from the brachial plexus at C8-T1
  •  Travels down the medial aspect of the arm through arcade of struthers
  •  It passes through the cubital tunnel posteriorly to the elbow.
  • The ulnar nerve penetrates the flexor carpi ulnaris muscle
  •  At the wrist, the ulnar nerve travels superficially to the flexor retinaculum and passes through Guyon’s canal.
Sensory functions
  • Innervates the medial one and a half fingers and palm area through its three branches; palmar cutaneous branch, dorsal cutaneous branch and superficial branch
Motor functions
  • Innervates two muscles in anterior forearm: flexor carpi ulnaris and medial half of flexor digitorum profundus
  • Innervates most of the intrinsic muscles of the hand including: hypothenar muscles, adductor pollicis, palmar and dorsal interossi of the hand, medial two lumbricals

(3)

The anatomy of Cubital tunnel and Guyon’s Canal

  • Cubital tunnel: space between posterior and transverse bands of the medial collateral ligament (deep) and Obsbourne’s ligament where the ulnar nerve enters the forearm
  • Guyon’s canal: formed by four borders, volar carpal ligament (roof), transverse carpal ligament (floor), hook of hamate (radial border) and pisiform (ulnar border). The canal is further subdivided into three zones, which cause different clinically relevant symptoms (4):
    • Zone 1: dual motor and sensory deficit
    • Zone 2: isolated motor deficit
    • Zone 3: isolated sensory deficit

The clinical history: working up red flags and common compression sites.

Once red flag conditions have been ruled out (cervical compression, brachial compression, systemic features, and masses). The diagnosis of ulnar nerve entrapment syndromes can be made from 5 S features in the clinical history, alongside the clinical exam.

History

In the clinical history, there are three broad considerations to think about before moving to take a more focussed history.

  1. Does the patient have any red flag features?
    1. Weight loss, night pain, pain unrelated to movement, neck mass, axillary mass, generalised muscle weakness, bilateral symptoms
  2. Have I ruled out a more central compression in the neck or brachial plexus?
  1. Eg, Thoracic outlet syndrome

3) Have I considered systemic disorders? (5)

  1. Eg, neuromuscular disorders eg, ALS

 Take a focussed history using the 5S focused history:

Examination

Guyon’s canal syndrome (5) Cubital tunnel syndrome
Physical examination
  • Inspection/palpation: masses, deformities, pulsatile masses, tenderness over bones
  • Inspection/palpation: masses, deformities
  • Determine carrying angle at elbow
  • Check for ulnar nerve subluxation with elbow flexion/extension
Motor examination
  • Systematic examination of muscles in the hand
  • Palmar brevis sign (see below)
  • Froment’s test
  • Wartenberg’s sign-
  • Scratch Collapse test- useful tool for diagnosing and localising peripheral nerve compression

 https://www.physio-pedia.com/Scratch_Collapse_Test

Sensory examination
  • Two-point discrimination, light touch and Semmes- Weinstein monofilament testing to delineate sensory loss
  • Tinel’s sign
  • Elbow flexion test
  • Provocative test
  • Tinel’s sign
  • Semmes- Weinstein monofilament testing, 2 point and vibratory testing
Vascular examination
  • Palpate brachial, radial and ulnar pulses, testing for a thrill/bruits, pulsatile pulse
  • Temperature and skin changes in hand- cold, pale fingers indicate arterial insufficiency
  • Allen’s test
  • Doppler examination may indicated
Differentiators between Guyon’s canal and Cubital tunnel syndrome
    • Testing sensation over dorsal ulnar aspect of hand– preserved in Guyon’s canal syndrome as the dorsal ulnar cutaneous nerve which innervates this region does not pass through Guyon’s canal (6)
  • Palmar brevis sign– abduction of little finger coincides with palmaris brevis contraction in Guyon’s canal syndrome but not in cubital tunnel syndrome



Imaging

MSK Imaging can be considered when there is a suspicion of an underlying compressive lesion. This usually starts with ruling out proximal site before going distal (Cervical Spine > Thoracic outlet > Brachial plexus > Cubital Tunnel  > Guyon’s Canal).

Electrodiagnostic testing

Whilst a suspected diagnosis of ulnar nerve entrapment neuropathies can be made on clinical examination and history, there are some cases where further studies nerve conduction studies (NCS) and electromyogram (EMG) may be useful (7). This is when there is diagnostic uncertainty or where you may need to locate the exact location of the entrapment to aid injection targets or surgical planning. In practical terms this is most important if you need to distinguish between:

  1. C8 radiculopathy vs a peripheral ulnar nerve neuropathy

  2. Nerve entrapment at the medial epicondyle vs cubital tunnel

  3. The level of compression at the Guyon’s canal

Nerve conduction studies (NCS) analyse large myelinated sensory and motor fibres, in controlled conditions. Characteristic changes to summated action potentials of sensory (SNAPs) and motor muscle fibres (CMAPs), can help to determine the site of compression.

Lesion distal to Guyon’s canal

Lesion at the level of the elbow

  • more involvement of flexor digital interosseous (FDI) than abductor digit minimi (ADM) (8)

  • flexor carpi ulnaris (FCU) and flexor digitorum profundus (FDP) are spared with a lesion at the elbow



Key Ultrasound findings of Cubital Tunnel and Guyon’s Canal Entrapment

Ultrasound is a highly effective tool used for the assessment of ulnar nerve neuropathies, alongside the characterisation of symptoms (5 S approach). It allows for dynamic assessment of nerve morphology, measurements of the affected and unaffected areas of the nerve can be assessed with movement & functional compression. MSK Ultrasound can also uses to deliver diagnostic and therapeutic steroid injections or nerve hydro-disection procedures (9).

Guyon’s Canal Syndrome

Cubital Tunnel Syndrome

  • Possible mechanical compression of nerve (lipomas, ganglion cysts)

  • Ulnar nerve swelling or maximum swelling point.

  • Assess integrity of artery through use of Doppler (10)

  • Possible fracture of hook of hamate (11)

  • Ulnar nerve thickening:

    • Cross- sectional area- several cut-off values reported in literature eg,>10mm2 (12)

  • Changes in echotexture eg, reduced number of nerve fasicles

  • Swelling ratio- comparison of nerve size at elbow to another level eg >1.5 (13)



Ultrasound findings in cubital tunnel syndrome

Sensitivity (%)

Specificity  (%)

Cross sectional area cut off for ulnar nerve

> 8.95mm (15)

93.8

88.3

>9mm (16)

84

80

>9.5mm (17)

100

80

>10mm (18) (19)

82-88

72-88

Distance from Medial epicondyle to nearest surface of Ulnar nerve at full elbow extension

<0.53cm (20)

71.4

90.7



MSK imaging

Description

A close-up of a mri Description automatically generated

Axial MRI STIR sequence images at the level of the cubital tunnel

Finding: Perineural oedema of the ulnar nerve

A close-up of a mri Description automatically generated

Axial MRI STIR sequence images at the level of the cubital tunnel

Finding: The Ulna nerve is enlarged with a bright appearance.

A ultrasound image of a fetus Description automatically generated

A ultrasound of a baby Description automatically generated

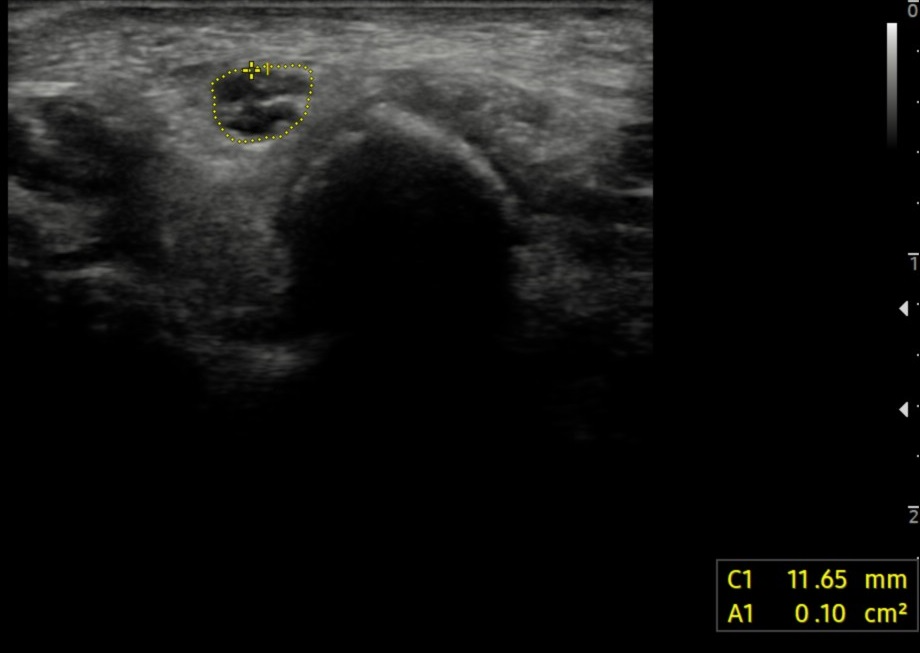

Ultrasound images in the transverse plane depicting the cubital tunnel

Findings: Ultrasound findings showing a cross sectional area of 10mm2 upper end of normal.

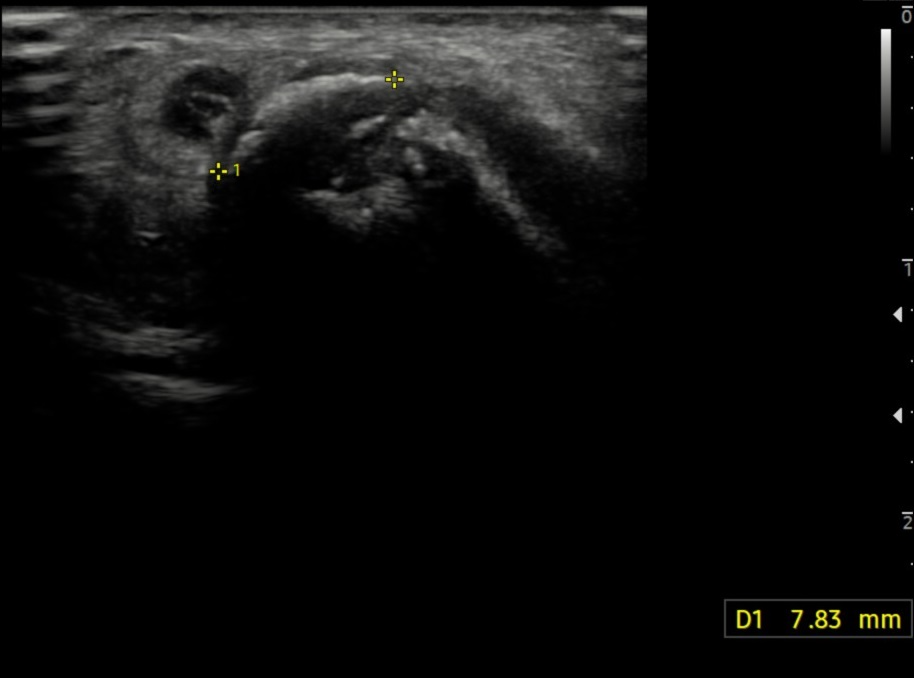

Findings: The second image shows an avulsion fracture of the medial epicondyle causing ulna nerve impingement symptoms.

Dynamic ultrasound

A close-up of a mri Description automatically generated

Axial MRI T1W image

Finding Normal ulna nerve – visualised at Guyon’s canal.

Management options

Ulnar nerve neuropathies can be managed in 3 ways:

Conservative management

Mild symptoms that do not severely impact quality of life can be managed conservatively (splinting & activity modification) (25). Think about the 5S’s history you took for the patient with a particular focus on the ‘Social’ part of the history which considered the occupation and recreational history. Tailored advice, focussed rehabilitation and biomechanics adjustments can be delivered on a case-by-case basis depending on the precipitating and aggravating factors. For example, for a cyclist where you might suspect the cycling as being the causative factor underling their symptoms, you may recommend a change in handlebars or grip to help alleviate symptoms.

Minimally invasive treatments

Minimally invasive treatments involve corticosteroid or dextrose injections which have shown variable efficacy rates in patients. This may depend on the severity of the neuropathy.

Authors

Type of study

Comparison of injection

Participants (n=)

Outcomes

Main take away points from the study

Chen et al (26)

Prospective, randomized, double-blind, controlled trial

Single perineural injection with 5 mL Dextrose 5% with water compared to 3 mL corticosteroid (triamcinolone acetonide, 10mg/mL) mixed with 2 mL normal saline

36

  • Change in visual analogy scale digital pain or paraesthesia/dysesthesia and cross sectional areas of nerve at 1,3,4 & 6 months

  • Steroid and dextrose both reduced pain score and cross sectional area.

Vanveen et al (21)

Randomised double blinded study

40mg methylprednisolone acetate and 10mg lidocaine hydrochloride compared to placebo

55

  • Change in symptoms after 3 months

  • Electrodiagnostic and ultrasonography findings

  • Significant decrease in cross- sectional area of ulnar nerve

  • Negligible  symptom change after 3 months between two groups

Kaplan et al (22)

Randomised double blinded study

5cc 5% dextrose injection compared to normal saline

40

  • Change in symptoms at 2,4 and 12 weeks

  • Electrodiagnostic and ultrasonography findings

  • Significant improvement in symptoms in dextrose group compared to control at week 4 and 12

Surgical treatment

In cases where conservative or minimally invasive techniques have proven to be ineffective, surgical treatment may be indicated. There are a variety of surgical techniques, which have the unifying aim of nerve decompression, and the two most common interventions are simple decompression and decompression with transposition of the ulnar nerve.

Surgical treatment is recommended in cases where:

  • Conservative and non-invasive treatment trials have led to no improvement.

  • Serious compression of the ulnar nerve

  • Muscle weakness/damage from nerve compression

Surgical outcome tends to be good, but the degree of compression must be considered. In severe compression, (muscle wasting) or loss of nerve function symptoms may remain after surgery. Since nerve recovery is slow, it may take a while to see the surgical outcomes.

The aim of surgical treatment is to relieve pressure on the ulnar nerve so that it is no longer compressed and able to glide freely through the full range of motion.

Cubital tunnel syndrome surgical techniques

Operation

Cubital tunnel release for mild/moderate nerve compression where the nerve does not slide out from the medial epicondyle on elbow flexion.

Ulnar nerve anterior transposition

Medial epicondylectomy

Technique

Cubital tunnel ligament (Osborne’s ligament) roof cut and divided so tunnel size is increased and less pressure on the nerve.

There nerve is moved anterior to the medial epicondyle. Three variations:

  • Subcutaneous transposition

  • Intermuscular transposition

  • Submuscular transposition

Removal of part of the medial epicondyle to prevent nerve compression on bony ridge on elbow flexion.

A review identified no statistically significant difference between simple decompression and transposition surgeries in terms of clinical and neurophysiological improvement, but a higher number of wound infections was associated with transposition surgeries (23). Post-surgical recovery often required splinting for 3-6 weeks alongside a rehabilitation programme.

Surgery to treat ulnar nerve compression at the wrist involves either removing the cause of construction or opening the Guyon’s canal. As with decompression at the cubital tunnel, it may take a while to see the surgical outcome, with possible incomplete recovery in older patients with long-term compression and some muscle wasting/weakness being irreversible.

Conclusion

  • Ulnar nerve entrapment commonly occurs at two anatomical landmarks: Guyon’s canal and the Cubital tunnel.

  • A detailed clinical history using the 5S framework and the scratch collapse test can be used in clinic to localise an ulnar nerve peripheral neuropathy.

  • Nerve conduction studies can help to grade the degree and site of neuropathy.

  • Ultrasound features such as – enlarged cross sectional area, dynamic subluxation or evidence of compressive lesions can help to diagnose the condition.



Authors

Dr Osama Munajjed

Senior House Officer

Imperial College Healthcare Trust

Miss Geethana Yogarajah

5th year medical student, University of Cambridge

Dr Rifat Hassan

Foundation Year 1 doctor

Norfolk & Norwich University Hospitals

@RifatHassan_

Dr Preena Patel

Consultant Musculoskeletal and Paediatric Radiologist

MSK Lead (Imaging)

Luton & Dunstable University Hospital

Dr Irfan Ahmed

Locum Consultant in Musculoskeletal, Sport & Exercise Medicine, Addenbrooke’s Hospital

Twitter @ExerciseIrfan

Mr Niel Kang

Consultant Trauma & Orthopaedic Surgeon

Cambridge University Hospitals NHS Trust

Affiliate Assistant Professor

Clinical school of medicine, University of Cambridge

Education and Careers Committee

British Orthopaedic Association

Twitter @kangstagram77

No relevant conflicts of interests or relevant disclosures declared by any of the authors.

credit statement: Conceptualization: O.M., G.Y., I.A. and N.K.; Data curation: R.H. and O.M.; Supervision: I.A. and N.K.; MSK imaging: P.P.; Writing – original draft: O.M. and G.Y.; Writing – review & editing: O.M., G.Y., R.H., P.P., I.A. and N.K.

References:

  1. Osei DA, Groves AP, Bommarito K, Ray WZ. Cubital Tunnel Syndrome: Incidence and Demographics in a National Administrative Database. Neurosurgery. 2016 Dec 27;80(3):417–20.

  2. Mondelli M, Giannini F, Ballerini M, Ginanneschi F, Martorelli E. Incidence of ulnar neuropathy at the elbow in the province of Siena (Italy). Journal of the Neurological Sciences [Internet]. 2005 Jul 15 [cited 2023 Mar 27];234(1-2):5–10. Available from: https://pubmed.ncbi.nlm.nih.gov/15993135/

  3. Wikipedia. Ulnar nerve entrapment [Internet]. Available from: https://en.wikipedia.org/wiki/Ulnar_neuropathy#/media/File:Nerves_of_the_left_upper_extremity.gif

  4. Maroukis BL, Ogawa T, Rehim SA, Chung KC. Guyon Canal: The Evolution of Clinical Anatomy. The Journal of Hand Surgery. 2015 Mar;40(3):560–5.

  5. Earp BE, Floyd WE, Louie D, Koris M, Protomastro P. Ulnar Nerve Entrapment at the Wrist. Journal of the American Academy of Orthopaedic Surgeons. 2014 Nov;22(11):699–706.

  6. Ramage JL, Varacallo M. Anatomy, Shoulder and Upper Limb, Hand Guyon Canal. Treasure Island (FL): StatPearls Publishing; 2023 Jan-. Available from: https://www.ncbi.nlm.nih.gov/books/NBK534814/

  7. Bains S, Rocha Cabrero F. Electrodiagnostic Evaluation of Ulnar Neuropathy. [Updated 2022 Oct 17]. In: StatPearls [Internet]. Treasure Island (FL): StatPearls Publishing; 2023 Jan-. Available from: https://www.ncbi.nlm.nih.gov/books/NBK564408/

  8. Elhassan, Bassem MD; Steinmann, Scott P. MD. Entrapment Neuropathy of the Ulnar Nerve. Journal of the American Academy of Orthopaedic Surgeons 15(11):p 672-681, November 2007

  9. Mezian K, Jačisko J, Kaiser R, Machač S, Steyerová P, Sobotová K, et al. Ulnar Neuropathy at the Elbow: From Ultrasound Scanning to Treatment. Frontiers in Neurology [Internet]. 2021 May 14 [cited 2023 Apr 2];12:661441. Available from: https://www.ncbi.nlm.nih.gov/pmc/articles/PMC8160369/

  10. Choi SJ, Ahn JH, Ryu DS, Kang CH, Jung SM, Park MS, et al. Ultrasonography for nerve compression syndromes of the upper extremity. Ultrasonography. 2015 Jan 13;34(4):275–91.

  11. Guyon’s Canal Syndrome [Internet]. www.evidencesportandspinal.com. Available from: https://www.evidencesportandspinal.com/Injuries-Conditions/Hand/Hand-Issues/Guyon-s-Canal-Syndrome/a~286/article.html

  12. Chang KV, Wu WT, Han DS, Özçakar L. Ulnar Nerve Cross-Sectional Area for the Diagnosis of Cubital Tunnel Syndrome: A Meta-Analysis of Ultrasonographic Measurements. Archives of Physical Medicine and Rehabilitation [Internet]. 2018 Apr 1;99(4):743–57. Available from: https://pubmed.ncbi.nlm.nih.gov/28888384/

  13. Beekman R, Visser LH, Verhagen WI. Ultrasonography in ulnar neuropathy at the elbow: A critical review. Muscle & Nerve. 2011 Apr 11;43(5):627–35.

  14. Kerasnoudis A, Tsivgoulis G. Nerve Ultrasound in Peripheral Neuropathies: A Review. Journal of Neuroimaging. 2015 May 21;25(4):528–38.

  15. Kim JH, Won SJ, Rhee WI, Park HJ, Hong HM. Diagnostic Cutoff Value for Ultrasonography in the Ulnar Neuropathy at the Elbow. Annals of Rehabilitation Medicine. 2015;39(2):170.

  16. Rayegani SM, Raeissadat SA, Kargozar E, Rahimi-Dehgolan S, Loni E. Diagnostic value of ultrasonography versus electrodiagnosis in ulnar neuropathy. Medical Devices: Evidence and Research. 2019 Feb;Volume 12:81–8.

  17. Hamdy M, Hafez AE, Mohamed AK & FA. Diagnostic role of neuromuscular ultrasound in cubital tunnel syndrome. International Journal of Clinical Rheumatology [Internet]. 2020 Jan 8 [cited 2023 Oct 14];14(6):288. Available from: https://www.openaccessjournals.com/articles/diagnostic-role-of-neuromuscular-ultrasound-in-cubital-tunnel-syndrome-13130.html

  18. Ayromlou H, Tarzamni MK, Daghighi MH, Pezeshki MZ, Yazdchi M, Sadeghi-Hokmabadi E, et al. Diagnostic Value of Ultrasonography and Magnetic Resonance Imaging in Ulnar Neuropathy at the Elbow. ISRN Neurology [Internet]. 2012 [cited 2020 Jul 20];2012:1–6. Available from: https://www.ncbi.nlm.nih.gov/pmc/articles/PMC3409534/pdf/ISRN.NEUROLOGY2012-491892.pdf

  19. Volpe A, Rossato G, Bottanelli M, Marchetta A, Caramaschi P, Lisa Maria Bambara, et al. Ultrasound evaluation of ulnar neuropathy at the elbow: correlation with electrophysiological studies. Rheumatology. 2009 Sep 1;48(9):1098–101.

  20. Lee GJ, Park D. Ultrasonographic Findings of the Ulnar Nerve Following Elbow Flexion in Patients with Cubital Tunnel Syndrome. Pain Medicine. 2020 Jun 28;21(11):2684–91.

  21. vanVeen KEB, Alblas KCL, Alons IME, Kerklaan JP, Siegersma MC, Wesstein M, et al. Corticosteroid injection in patients with ulnar neuropathy at the elbow: A randomized, double-blind, placebo-controlled trial. Muscle & Nerve. 2015 Jun 18;52(3):380–5.

  22. Başak Mansız-Kaplan, Barış Nacir, Secil Pervane-Vural, Olcay Tosun Meric, Burcu Duyur Çakıt, Hakan Genç. Effect of Perineural Dextrose Injection on Ulnar Neuropathy at the Elbow: A Randomized, Controlled, Double-Blind Study. Archives of Physical Medicine and Rehabilitation. 2022 Nov 1;103(11):2085–91.

  23. Caliandro P, La Torre G, Padua R, Giannini F, Padua L. Treatment for ulnar neuropathy at the elbow. Cochrane Database Syst Rev. 2016 Nov 15;11(11):CD006839. doi: 10.1002/14651858.CD006839.pub4. PMID: 27845501; PMCID: PMC6734129.

  24. Raut P, Jones N, Raad M, Kieffer W. Common peripheral nerve entrapments in the upper limb. Br J Hosp Med (Lond). 2022 Oct 2;83(10):1-11. doi: 10.12968/hmed.2022.0111. Epub 2022 Oct 30. PMID: 36322444.

  25. HO, E.S., ZUCCARO, J., DAVIDGE, K., BORSCHEL, G. and WRIGHT, V., 2018. Effectiveness of Conservative Treatment for Cubital Tunnel Syndrome: A Systematic Review. Journal of Hand Therapy, 31(1), pp. 145.

  26. Chen LC, Ho TY, Shen YP, Su YC, Li TY, Tsai CK, Wu YT. Perineural Dextrose and Corticosteroid Injections for Ulnar Neuropathy at the Elbow: A Randomized Double-blind Trial. Arch Phys Med Rehabil. 2020 Aug;101(8):1296-1303. doi: 10.1016/j.apmr.2020.03.016. Epub 2020 Apr 20. PMID: 32325164.

(Visited 2,116 times, 1 visits today)
